Lauten Audio LA-120 B-Stock

B-floor

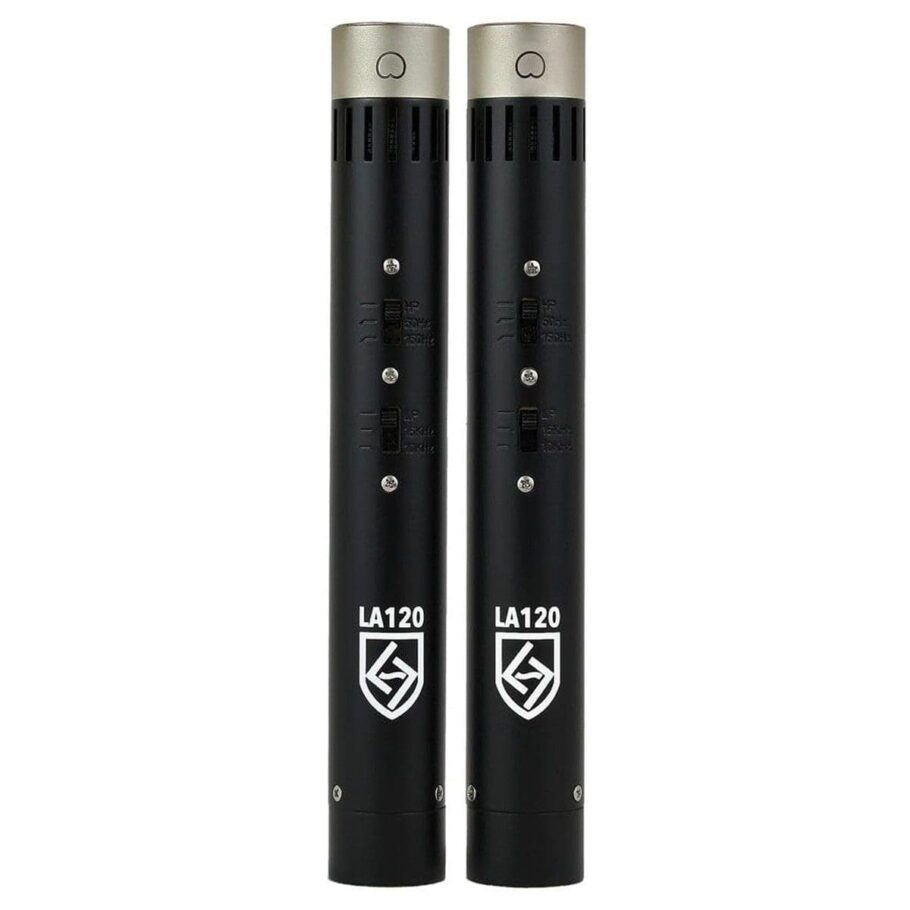

The LA-120 is a transformerless and sonically flexible, small-diaphragm condenser microphone for recording and live sound applications. This dynamic and transparent design is equipped with two dedicated filters for analog sound-shaping at the source, and ships with interchangeable capsules for added sonic flexibility. Unlike traditional microphone designs that utilize a transformer to introduce color and saturation, the LA-120 utilizes a USA made JFET to capture the uncolored vibrance and character of an instrument with life and authenticity.

Features

• Professional small diaphragm FET studio condenser microphones
• Ideal for capturing vibrant character and transients
• Interchangeable cardioid and omni-directional capsules
• High-cut and low-cut filters for removing unwanted noise and taming frequencies
• Ultra-low noise USA JFET amplifier for superior solid-state sounds

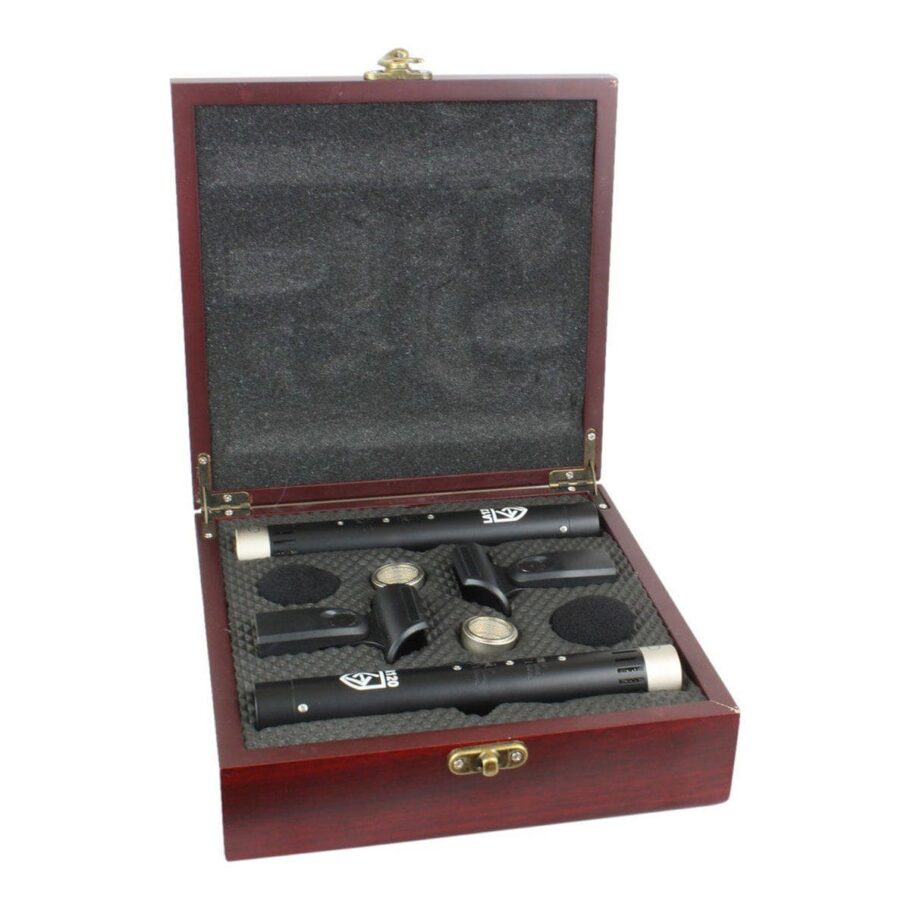

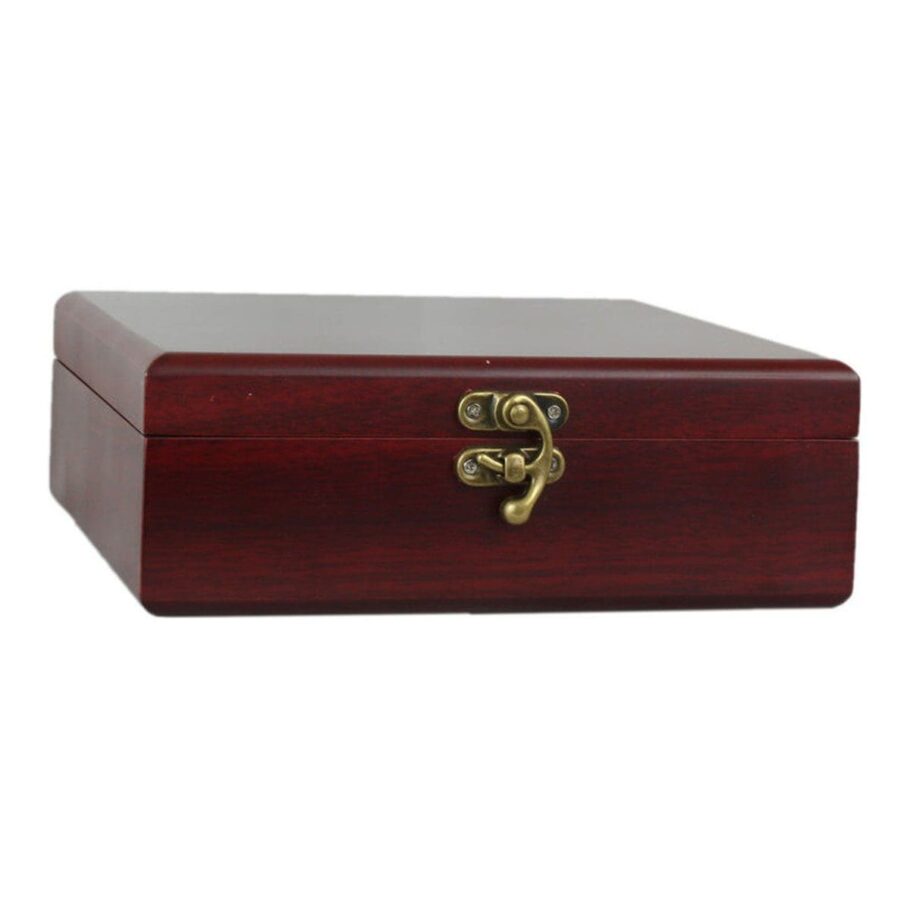

• Includes 2 hard mount clips, foam wind screens, and wood style box

Specifications

• Type: Small diaphragm FET true pressure gradient condenser
• Polar Patterns: Cardioid and Omni-directional (swappable)
• Circuit: Ultra-low noise JFET transistor with balanced output
• Frequency Range: 20Hz – 20kHz
• Dynamic Range: 120dB minimum
• Impedance: 200 ohms
• Max SPL: Less than 0.5 percent THD @ 1000Hz: 130dB
• Self-Noise Level: 15dB-A
• Sensitivity: 10Mv/Pa – 40dB (0dB = 1V/Pa 1kHz)
• Special Features: Selectable, independent 50 & 150Hz low-cut & 15kHz high-cut
• Connector: 3-pin XLR
• Power Requirement: + 48v phantom power
• Length per mic:160 mm
• Diameter per mic: 12 mm
